About This Node
Welcome to the Oakridge Omni node, a part of the growing Meshtastic network in the Greater Toronto Area. This node serves as a communication point in the south Mississauga area, helping to expand the mesh network's coverage and reliability.
Hardware
- Device: Heltec ESP32 V3
- Antenna: 1.5m Omni

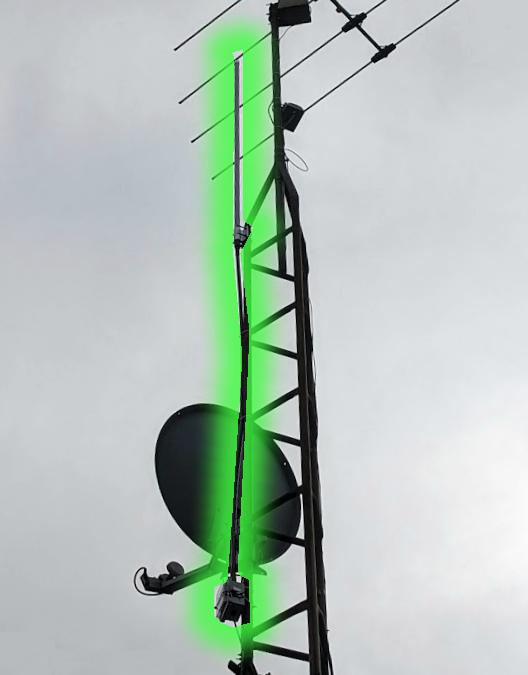

- Mount: Mast-mounted
Location
- City: Mississauga
- Region: Greater Toronto Area
- Province: Ontario, Canada
Join the Network
If you're interested in Meshtastic and would like to contribute to the network's growth in the GTA, consider setting up your own node. The more nodes we have, the more resilient and useful the network becomes.
RF Equipment
- Cable: LMR-600 N-Type Male to N-Type Male (6ft)
- Antenna: Barracuda 915MHz 8dBi Omni-Directional
- Frequency: 906.875 MHz (NA)
Technical Details
- Protocol: LoRa Spread Spectrum
- Range: Up to 20km line of sight
- Power: USB-C powered with battery backup
- Enclosure: LeMotech Junction Box, 4.7"x3.5"x2.7"
About the Technology
Meshtastic
An open-source communications platform that uses inexpensive LoRa radios to create long-range mesh networks. Perfect for hiking, emergency comms, or building community networks.
Learn MoreESP32 & LoRa
The Heltec ESP32 V3 combines WiFi, Bluetooth, and LoRa capabilities in one compact device. LoRa technology enables long-range, low-power wireless communication perfect for mesh networking.
